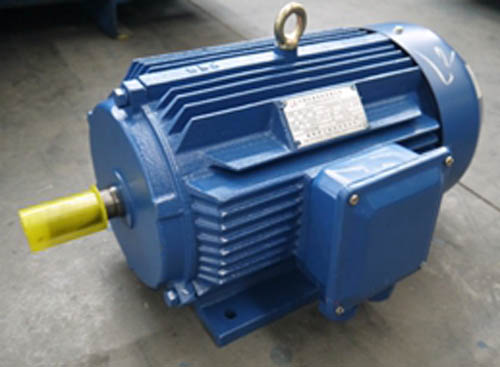

YE3-80~355 Series Standard Efficiency Three Phase Asynchronous Motor
|
概述 |
Summary |
|
機座號：H80~H355 |
Frame Size: H80~H355 |
|
額定功率：0.55~375kW |
Rated Power: 0.55~375kW |
|
額定電壓：380V |
Rated Voltage: 380V |
|
額定頻率：50Hz |
Rated Frequency: 50Hz |
|
極數：2~10極 |
Poles: 2p,4p,6p,8p,10p |
|
防護等級：IP54,IP55 |
Protection Degree: IP54,IP55 |
|
絕緣等級：F |
Insulation Class: F |
|
冷卻方式：IC411 |
Cooling Method: IC411 |
|
工作制：S1連續工作制 |
Duty: S1 |
|
能效等級：GB18613-2012 3級 |
Efficiency Class: IEC60034-30-1:IE2 |
結構特點 Structural characteristics
YE2系列為全新設計的高效低壓三相異步電動機，采用高強度鑄鐵結構，具有效率高、可靠性高、造型美觀、噪音低、振動小等特點，適用于風機、水泵、壓縮機及工程機械等工業領域。
The YE2 series of high efficiency motors with high strengh cast iron structure, have the characteristics of high efficiency, high reliability, beautiful apperance, low noise, little vibration, and can be applied to many industrial fields such as fan, pump, compressor, construction machinery, etc.
The YE2 series high efficiency motors’ mounting dimension and accessories including fan, fan cover, terminal box and so on are exactly the same as YE3 series ultra high efficiency motors.
