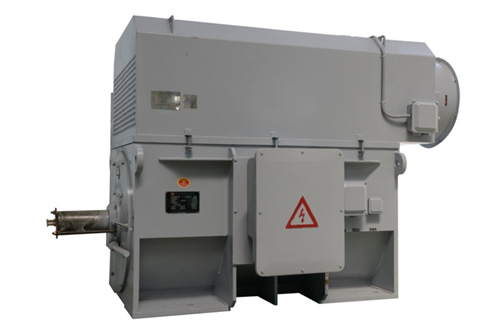

YP, YPKK系列6kV(H315~630)中型高壓變頻三相異步電動機
YP, YPKK Series 6kV (H355~630) Medium-size High Voltage Variable Frequency Motor
| 概述 | Summary |
| 額定功率：185~2800kW | Rate power: 185~2800kW |
| 額定電壓：3kV、6kV | Rate voltage:3kV, 6kV |
| 機座號： 355~630 | Frame size: 355~630 |
| 極數：4、6極(可生產8~12極) | Poles: 4, 6p (or 8~12極p) |
|
防護等級：YP系列：IP23 YPKK系列：IP54、IP55 |
Protection degree: YP series: IP23 YPKK series: IP54, IP55 |
|
冷卻方式：YP系列：IC06 YPKK系列：IC666 |
Cooling method: YP series: IC06 YPKK series: IC666 |
|
調速范圍：恒轉矩：5~50Hz 恒功率：50~67Hz |
Frequency range: constant torque: 5~50Hz constant power: 50~67Hz |
結構特點 Structural characteristics
該系列電動機采用箱式鋼板結構，采用高壓變頻器供電以達到無極調速的功能，電機通風罩或冷卻器采用強制風冷的結構，確保電機在低頻運行狀態下的通風散熱；電機軸承采用絕緣結構，減小了軸電流對軸承的損傷，提高了軸承壽命。該產品具有高效節能、低噪音、振動小、調速范圍廣、精確度高和高可靠性等優點，可驅動各種通用機械如風機、水泵、壓縮機、礦山機械等，被廣泛應用于電站、鋼廠、礦山等工礦企業中。
This series motors with box type steel structure, can be ajusted its speed using high voltage inverter; Forced cooling structure for the cooler or protective cover, ensure the cooling effect of motor under low frequency operation; Insulation structure for bearing, reduce the damage from shaft current and improve the life of bearing. This series motors have characteristics of high reliability, wide speed range, high precision, beautiful apperance, low noise, little vibration, and can be applied to fan, pump, compressor, mining machinery, engineering machinery installed in power plant, steel mill, mine and so on.
This series motors with box type steel structure, can be ajusted its speed using high voltage inverter; Forced cooling structure for the cooler or protective cover, ensure the cooling effect of motor under low frequency operation; Insulation structure for bearing, reduce the damage from shaft current and improve the life of bearing. This series motors have characteristics of high reliability, wide speed range, high precision, beautiful apperance, low noise, little vibration, and can be applied to fan, pump, compressor, mining machinery, engineering machinery installed in power plant, steel mill, mine and so on.
