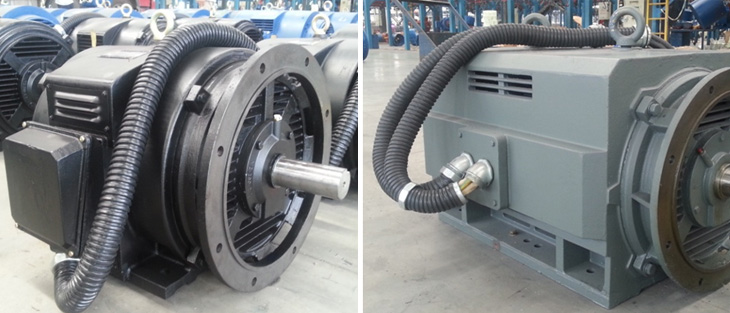

Three Phase Asynchronous Motors For compressor Industry
|
概述 |
Summary |
|
機座號：H132~H315 |
Frame Size: H132~H315 |
|
額定功率：11~200kW |
Rated Power: 11~200kW |
|
額定電壓：380V |
Rated Voltage: 380V |
|
額定頻率：50Hz |
Rated Frequency: 50Hz |
|
極數：2p,4p |
Poles: 2p,4p |
|
防護等級：IP54,IP55 |
Protection Degree: IP54,IP55 |
|
絕緣等級：F |
Insulation Class: F |
|
冷卻方式：IC411 |
Cooling Method: IC411 |
|
能效等級：GB18613-2012 3級,2級 |
Efficiency Class: IEC60034-30-1:IE2，IE3 |
|
外形及安裝尺寸同YE2，YE3電機 |
Mounting dimensions are same as YE2，YE3 series |
結構特點 Structural characteristics
空壓機專用電機是專門針對螺桿壓縮機的運行特性和使用情況而開發的，其防護等級分為IP23和IP54兩種。絕緣等級為F級，額定輸出時按B級溫升考核，服務系數下運行按F級溫升考核。標準配置的進口軸承，高精度的零部件加工，精心的裝配保證軸承的高可靠性運行。其功率等級和安裝尺寸符合IEC標準，效率高、噪音低、節能環保、可靠性高，是螺桿壓縮機的最適用產品。
This series motor is designed for special operation of compressor, with protection degree IP54 or IP23. Its insulation is class F, used in temperature class B at rate output and used in temperature class F at service factor output. Imported bearing for standard configuration, high precision of parts processing and accurate assembly ensure bearings have high reliability. Its rate power and mounting dimension meet IEC standard. This series motor has the characteristics of high efficiency, high reliability, low noise, little vibration, is the preferred product for compessor.
